Cleanroom Equipment
Cleanroom Equipment
Dynamic pass boxes, dispensing booths, chemical fume hoods, laminar airflow cabinets and isolators.
Equipment for controlled material transfer, localized HEPA-filtered work zones, safe local exhaust and high-level containment.
- SS 304 / SS 316 / 316L construction
- HEPA/ULPA filtration options
- Standard and custom sizes
Dynamic Pass Boxes
Controlled Material Transfer Between Clean Areas
Dynamic pass boxes reduce unnecessary personnel movement and help maintain controlled environmental conditions during material transfer.
Features
- SS 304 / SS 316 construction
- HEPA-filtered airflow
- Air circulation system
- Door interlocking
- UV option
- Differential pressure monitoring
- Touchscreen/HMI options
- Magnehelic/digital pressure indication
- Optional VHP compatibility
- Flush internal surfaces
Typical Sizes
Applications
- Cell therapy
- Pharmaceutical production
- Medical-device production
- BMT
- IVF
- Laboratory material transfer

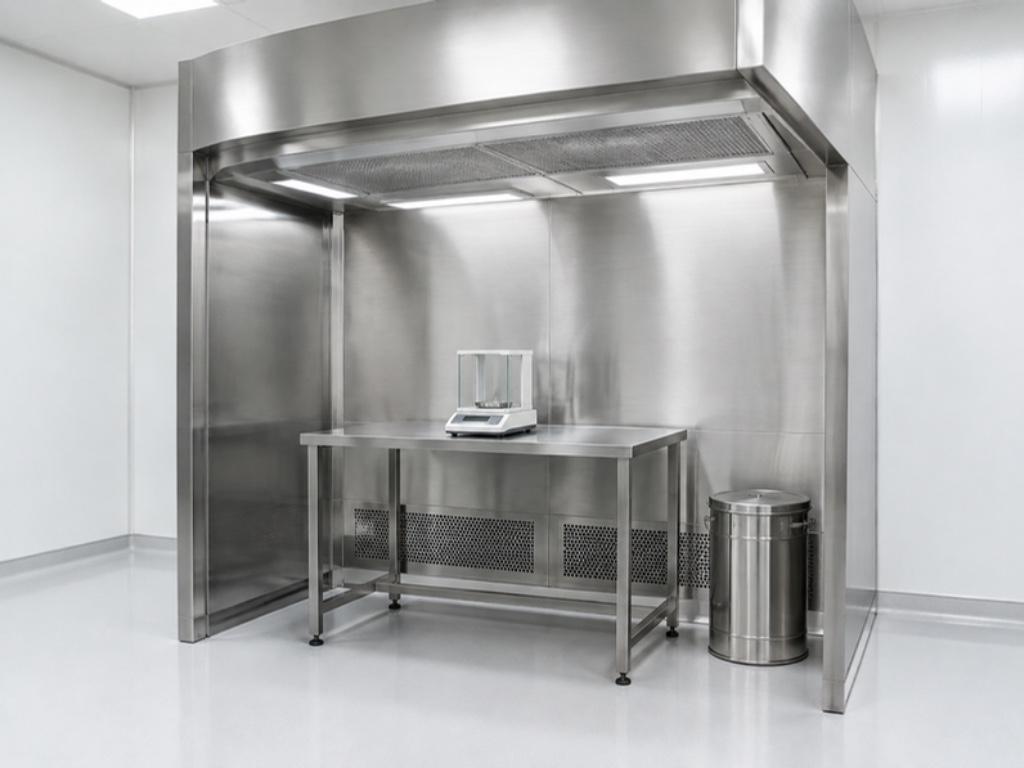

Dispensing Booths
Controlled Dispensing & Sampling Environment
Dispensing booths provide localized airflow control for weighing, sampling and dispensing operations.
Features
- SS 304/316 construction
- HEPA filtration
- Controlled airflow
- Vertical/downflow or horizontal airflow options
- Low particle generation
- Ergonomic working height
- LED lighting
- Differential pressure indication
- Optional dust extraction
Typical Working Sizes
Applications
- Pharmaceutical dispensing
- Sampling
- Powder handling
- Cell-culture media preparation
- Research laboratories

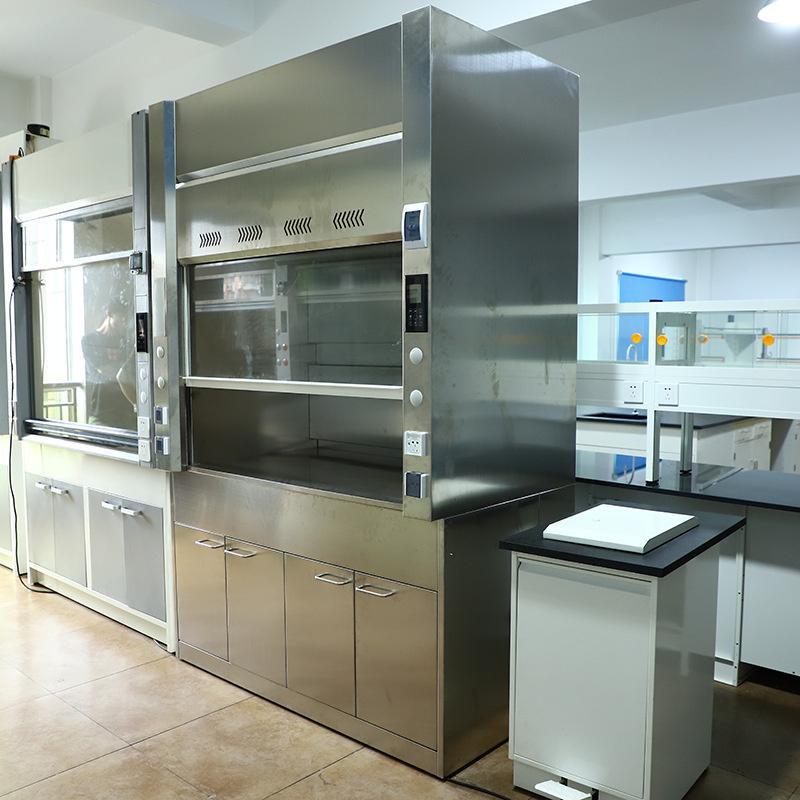

Chemical Fume Hoods
Safe Local Exhaust for Chemical Processes
Our chemical fume hoods are designed to capture and exhaust chemical vapours and hazardous fumes from laboratory operations.
Construction
- SS 304/316 work chamber
- Chemical-resistant worktop
- Toughened glass sash
- Variable airflow
- Exhaust connection
- LED lighting
- Airflow monitoring
- Alarm options
Typical Widths
Applications
- QC laboratories
- R&D laboratories
- Cell therapy support laboratories
- Chemical preparation
- Analytical laboratories

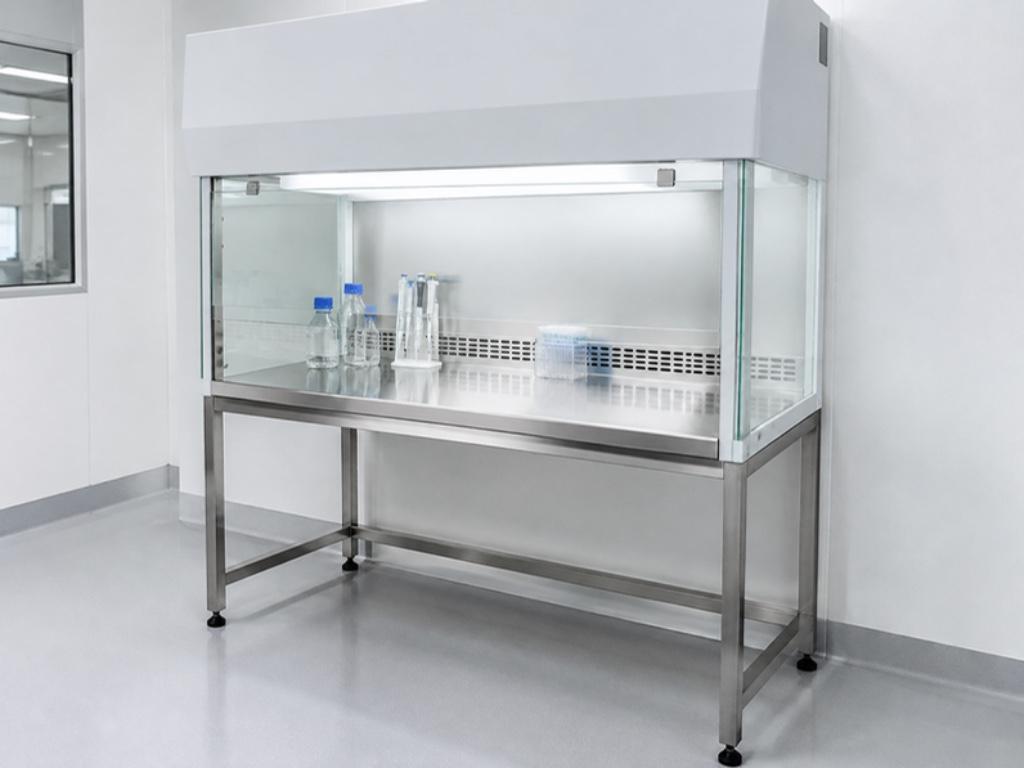

Laminar Airflow Cabinets
Localized HEPA-Filtered Critical Work Zones
Laminar airflow cabinets provide a controlled unidirectional airflow zone for processes requiring localized particulate protection.
Configurations
- Vertical laminar airflow
- Horizontal laminar airflow
- Bench-top systems
- Floor-standing systems
- Custom clean benches
Typical Sizes
Typical values| Model | Working Area |
|---|---|
| 2 ft | ~600 mm |
| 3 ft | ~900 mm |
| 4 ft | ~1,200 mm |
| 6 ft | ~1,800 mm |
Typical Air Velocity
Approximately 0.3–0.5 m/s
Subject to design and equipment qualification.
Filtration
- Pre-filter
- HEPA/ULPA filtration options
- SS 304 work chamber
- LED lighting
- Differential pressure monitoring
Applications
- Cell culture
- MSC processing
- T-reg cell work
- IVF laboratories
- Media preparation
- Medical-device assembly
Isolators
High-Level Containment & Aseptic Processing Systems
We design and integrate isolator systems for applications requiring physical separation between operator and process.
Features
- SS 304/316L construction
- Transparent viewing panels
- Glove ports
- Material transfer chamber
- HEPA-filtered supply/return
- Pressure control
- Temperature monitoring
- Differential pressure monitoring
- VHP decontamination option
- Leak testing capability
- PLC/HMI control
Typical Configurations
- Aseptic processing isolators
- Cell-processing isolators
- Sterility testing isolators
- Positive-pressure isolators
- Negative-pressure containment isolators
- Custom process isolators
Applications
- Cell therapy
- CAR-T processing
- MSC processing
- T-reg cell processing
- Sterile compounding
- Injectable pharmaceutical manufacturing
Start a project
Build Your Next Controlled Environment With Us
Whether you are establishing a medical-device manufacturing unit, CAR-T cell therapy facility, MSC laboratory, BMT center, IVF laboratory, or injectable biopharma facility, our engineering team can develop a complete cleanroom solution around your process.
Send us
- Project location
- Approximate area
- Process description
- Required cleanroom classification
- Existing architectural drawing
- Equipment list
- Target completion date
We can provide
- Concept Layout
- Technical Proposal
- BOQ
- Engineering
- Manufacturing
- Installation
- Validation
